| Name： |

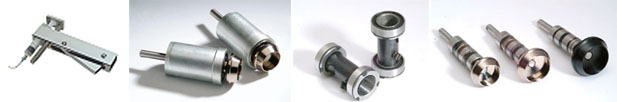

Airstream yarn-spinning rotation cup integrating |
| Style： |
Zili Machinery--Textile Special Parts--Spinning Series |
| Item： |
ZL-F03-002 |
| Information： |
T型转杯  | (A cup with sharp angle and plain bottom groove)
The yarn structure and dimension are similar to those of the contrast ring spindle yarn; Piling of the microdust in the agglomeration tank brings a less negative effect to the yarn quality ( self-cleaning function); Because of the shrinkage tendency of the yarn it isn't applicable to the indigo warp yarn treatment. Nor applicable to the diverse content raw materials. | U型转杯  | (Wide groove rotation cup) Applicable to the yarns for weaving the jean fabric; Applicable to the dyeing treatment of the indigo warp yarns.Because of the partial dirt in the aggromelation tank there is a danger to the cloudy spots when treating the high diverse content fiber raw materials; The strength of the yarns is lower than that with T-rotation cup. | V型转杯  | (Rotation cup with V-groove )
Applicable to spinning 100% acrylic yarns(the yarn is fluffy, much hair tangling and wrapping ): good homogeneity of yarn; lower yarn strength than that by T-rotation cup. |
转杯外径(mm) | 转杯转速 (rpm) | Applicable raw materials | Applicable yarn number | φ38 | 65000~90000 | Cotton,polyester,viscose staple fibre yarns, denial chemical fibre yarns and their blended yarns | Middle-fine yarn number
48tex~16tex(12s~36s) | φ42 | 45000~75000 | Cotton,polyester,viscose staple fibre yarns, denial chemical fibre yarns and their blended yarns | Middle-thick yarn number
100tex~29tex(6s~20s) | φ50 | 45000~65000 | Cotton,chemical fibre yarns and their blended yarns | Middle-thick yarn number 100tex~29tex(6s~20s) |
|
|
|
|
|
 |
|
| |
|
