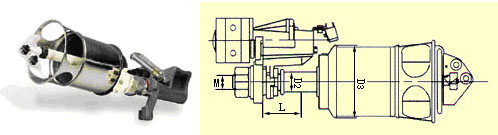

Name: Silk two-for-one twister spindle
Style: Zili Machinery--Textile Special Parts--Spindle Series
Item: ZL-F01-001
Information:

According to the inherent character of the raw material the silk two-for-one twister spindle applies a structure of the rolling bearing for the upper supporter and a sliding bearing for the lower supporter,while the tension is controlled by the tesntion ball. The running balance of the spindles is tested by an internationally top advanced running balanace  test instrument The yarn passage parts are made of the top wearing-resistant ceramic treated with an advanced plasm spray-coating technology.The stainless steel yarn collecting silo is of high hardness,lustre and wearing-resistant. The rotating part of the spindles is light in weight,adaptable to a speedy running.



Product Specification

Model

Name

Size & Measurement



Bearing hole diameter

D2

D3

L

M

Applicability

BD3384-1217

Silk two-for-one twister spindle

Φ9

Φ35

Φ130

67

M35×1.5

Silk
