【Usage】

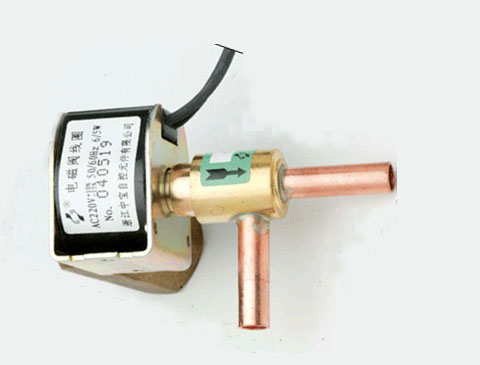

FDF6A solenoid valve is widely used in automatic control and the protect circle of air-conditioning, drying machine and refrigeration machine.
【Explanation】
Before brazing the valve body, to get rid of the coil, and protect valve body with wet cloth, and the body temperature should be below 120℃;
Orientation of installation: coil up-side, valve body 90 degree.
【Working condition】
Coil voltage:AC230V、AC220V、AC110V
Voltage range: 85%~110%
Frequency: 50/60Hz
Suitable refrigerant:R12,R22,R134a,R502,R600a etc
Medium temperature:-20℃~+120℃
Enviromental temperature: -20℃~+55℃
The highest working pressure:3.0MPa
FDF6A interior leak:≤500ml/min(Pressure difference 0.2MPa)
Air life-time:100,000 times
Temperature rise:less than 65℃
【Specifications】
