【Application】

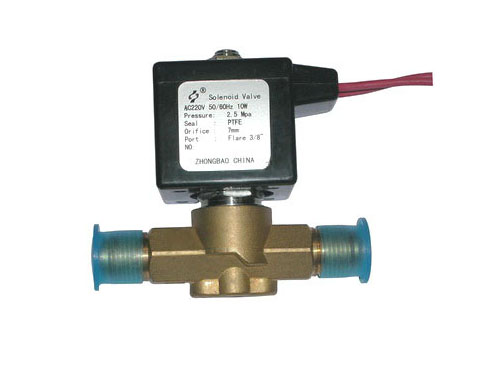

FDF7A solenoid valve is widely used in automatic control and the protect circle of AC \ Dehumidifier \ refrigerating machine of car air-conditioning.
【Explanation】
Removing the coil before brazing the valve body and protect valve body with wet cloth and the body temperature should be under;
Installation: coil up-side, valve body upright.
【Working condition】
Orifice,Φ7mm
Power, AC220V、AC110、DC24V、DC12V
Voltage range, 85%--110%
Frequency, 50/60Hz
Rating power, 10W
Suitable medium, R22、R134a etc
Medium temperature, -30℃~+130℃
Environmental temperature, -20℃~+50℃
Interior leak, ΔP=0.5Mpa，Q≤10ml/min
The Max working pressure, 5.0Mpa
Life, 100,000times
Temperature rise of coil, ≤80K
【Specifications】
