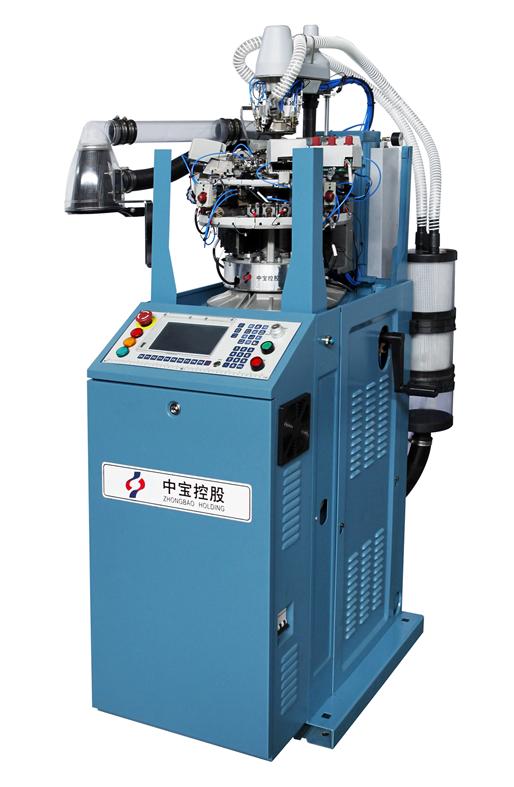

ZBSW-H04 is designed for knitting Jacquard Stockings & Pantyhose, produces Plain, Mesh and Jacquard socks.Including pairs of socks, ankle-length pants and body stocking, etc.



1.4-ways Yarn Feeder, each feeder is equipped with 8 yarn fingers, 4-ways Piezo-Actuator.

It meets requirements of all variety of socks;

2.The main finger is designed as the split type, usage cost down and easily for maintenance;

3.The needle arc range and socks size are finished by cylinder’s motion which is controlled by high-precision stepper motor, or by the tilt range of the stitch cam which controlled by 4 stitch cam stepper motor;

4.With the highly sensitive spandex feeder;

5.Circular creel with a photoelectric sensor;

6.Thestitch density is controlled by cylinder, stitch cam and sinker cam;

7.It can knitdifferent floating elastic yarn and jacquard patterns. What’s more, the jacquard motif with 2-3 colors can be knitted in the same course to achieve the function of jacquard pattern;

8.The safety system, equipped with air compress controlling unit, auto lubrication alarm unit, and auto overloading stop unit, prevents the damage to the machine and keeps the worker safe.

9.The key parts, such as bearing, magnetic valve, synchronous belt, needle and spline, etc. use the world class supplier’s first-rate product, assembled by the experienced worker under the SOP strictly, so the machine is a low noise, stable and long life cycle one;





* The maximum speed depends on various factors like: yarns, stitch’s types, and lubricant, etc.

* ZhongBao recommends the needles from Groz-Beckert^®





The certifications:

ISO 9001:2008, ISO 14001:2004, ISO/TS16949:2009 & GJB9001B-2009.
