1.Knitting system is fully controlled by computer, and core software is updatable; 2.1 main color +5auxiliary colorscan be knitin 1 line, the maxqty.of color is 16inone sock; 3.3D socks knitting supported; 4.2 ways - 2 colors feeding of elastic yarn; 5.Friendly UI, easy to be operated by Keyboard and Touch Screen; 6.Air valve controls the yarn fingers and cams’ action; 7.Stepper motor controls stitchdensity and yarn tension; 8.The double pick& double lift design makes the needle knit Y type heel, and 3 heels; 9.Automatic alarm system, breakage, disconnection, needle tongue trouble and other failures can be displayed immediately; 10.The continuedknitting function; 11.The cam systemunder Japan craftsmanship, it’s a wearproof and high stable one; 12.The automatic program controls refueling,cylinder oil mists evenly, and no greasy fabric; 14.Machine customization according to customer’s technical requirements; 15.English, Russian, and other multi-language are supported. Technical Specification Model | ZBMW-6FPPlain | Cylinder Diameter | 3.75” | Needle Qty. Range | 84~240N | Running Speed * | 300~380 RPM | Power | Drive Motor: 0.85 KW | | Fan Motor: 0.75KW | | Control Box: 0.80KW | Floor Space (W*L*H, MM) | 1500*1200*2400 | Net Weight | 300KG | Gross Weight | 350KG | Packing Dim. (W*L*H, MM) | 1080*840*1700 |

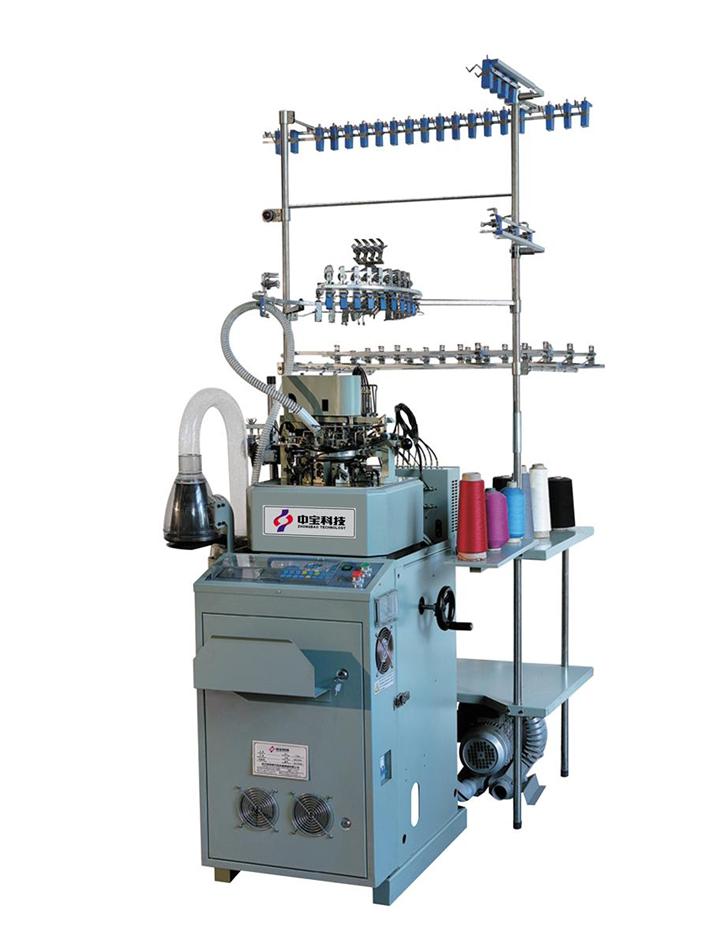

* The max. speed depends on various factors like: yarns, stitch’s types, and lubricant, etc. * The fan in the picture is optional. The certifications: ISO 9001:2008, ISO 14001:2004, ISO/TS16949:2009 & GJB9001B-2009. Contact: Sunny Tel: +86-575-86299222 E-mail: sale.t@myzbao.com
|
